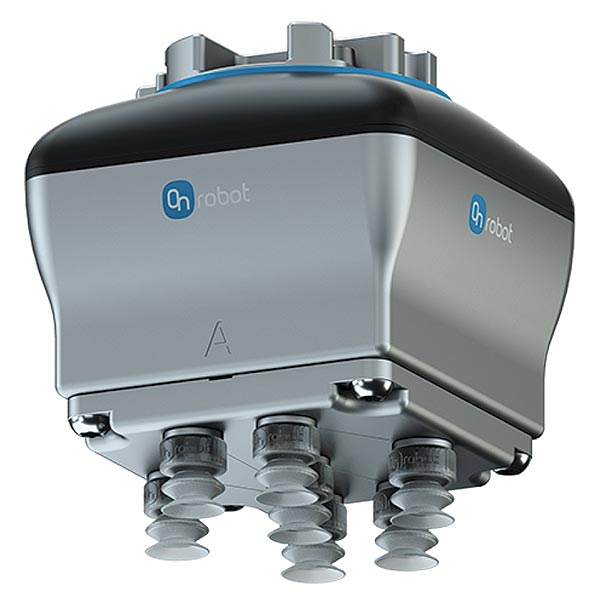

VGC10 Vacuum Gripper

The OnRobot VGC10 Vacuum Gripper delivers compact, powerful, and highly flexible vacuum automation for modern manufacturing environments. It is designed for manufacturers who need strong performance in tight spaces, without sacrificing payload capacity or efficiency.

At PSI, we supply advanced end of arm tooling solutions that help businesses improve productivity, reduce manual handling, and increase automation flexibility. The VGC10 Vacuum Gripper is a strong example of compact engineering that supports high performance robotic applications.

Because it combines lightweight construction with a 15 kg payload capacity, it is ideal for applications where space is limited but performance demands remain high.

What Is the OnRobot VGC10 Vacuum Gripper?

The OnRobot VGC10 is a compact electrical vacuum gripper designed for collaborative robots and small industrial automation systems. Unlike traditional pneumatic systems, it uses a built-in electric vacuum system. Therefore, no external air supply is required.

This removes the need for compressors, air lines, and additional infrastructure. As a result, installation becomes faster, cleaner, and more cost effective.

The VGC10 also offers highly flexible configuration options. Adjustable suction cups and modular arms allow it to adapt to many different part sizes, shapes, and materials.

Although it is smaller than the VG10 model, it maintains the same 15 kg payload capacity. Therefore, it delivers strong performance in a significantly more compact design.

Why Choose the VGC10 Vacuum Gripper?

Manufacturers increasingly require automation systems that can operate in confined spaces. Therefore, compact tooling solutions like the VGC10 are becoming essential.

Because the VGC10 is smaller and lighter than comparable vacuum systems, it can be used with smaller collaborative robots while still handling heavy or complex parts.

It is highly adaptable. Suction cups can be changed quickly, and configurations can be adjusted to suit different production needs.

Dual independent vacuum channels allow simultaneous gripping actions. Consequently, pick and release operations can occur within the same cycle, improving speed and efficiency.

This combination of flexibility and performance makes it suitable for a wide range of industries including electronics, packaging, logistics, and general manufacturing.

Compact Design for Tight Spaces

Space constraints are a common challenge in automated production environments. The compact design of the VGC10 offers a significant advantage.

Because it is smaller than traditional vacuum grippers, it can be installed in confined areas where other systems would not fit. As a result, manufacturers can automate processes that were previously not possible.

Its lightweight construction reduces strain on the robot arm. Even smaller collaborative robots can achieve high payload performance without compromising speed or stability.

This makes the VGC10 ideal for dense production lines and multi-station automation systems.

High Payload with Lightweight Construction

Despite its compact size, the VGC10 Vacuum Gripper supports a payload of up to 15 kg. This is a key advantage for manufacturers who need strong lifting capability without bulky equipment.

Because weight has been reduced compared to previous models, robots can operate more efficiently. Therefore, cycle times can improve without reducing handling capacity.

The gripper maintains excellent stability during operation. This ensures consistent performance across repetitive pick and place tasks.

As a result, manufacturers achieve both strength and precision in one compact system.

Flexible Suction and Customisation Options

The VGC10 is designed for maximum adaptability. Suction cups can be changed easily to suit different applications.

This flexibility allows manufacturers to handle a wide range of products including:

• Cardboard packaging
• Plastic components
• Metal parts
• Irregular shaped objects
• Lightweight consumer goods
• Industrial components

The gripper supports unlimited configuration potential through interchangeable arms and suction layouts. It can be tailored to highly specific production requirements.

This reduces the need for multiple specialised tools, which improves efficiency and lowers overall system costs.

Dual Independent Vacuum Channels

One of the key features of the VGC10 is its dual independent vacuum system.

Because each side of the gripper can be controlled separately, two actions can be performed simultaneously. For example, one side can pick up a part while the other releases another.

As a result, cycle times are reduced significantly.

This dual functionality increases production flow efficiency. Manufacturers can achieve higher output without adding additional robots or equipment.

This feature is especially valuable in packaging, palletising, and high speed assembly environments.

No External Air Supply Required

Traditional vacuum systems often depend on compressed air systems. However, the VGC10 eliminates this requirement entirely.

Because it uses a built-in electric vacuum system, there is no need for compressors or air lines. Installation becomes simpler and maintenance costs are reduced.

The absence of compressed air systems creates a quieter and cleaner working environment. This is particularly beneficial in collaborative robot applications where humans and machines work side by side.

Mobility is also improved. The gripper can be easily moved between workstations without infrastructure changes.

Easy Integration and Fast Deployment

The VGC10 Vacuum Gripper is designed for fast setup and simple programming.

Because it integrates seamlessly with leading collaborative robot systems, deployment time is significantly reduced. In many cases, systems can be operational within hours rather than days.

Additionally, pre-configured software simplifies setup. Therefore, even users without advanced robotics experience can operate the system effectively.

This reduces engineering time and speeds up return on investment.

Compatible with Leading Cobots

At PSI, we integrate the VGC10 with leading collaborative robot platforms including:

• UR3e
• UR5e
• UR7e
• UR10e
• UR12e
• UR16e
• UR20
• UR30

It also integrates with OnRobot tooling systems such as Quick Changer and Dual Quick Changer solutions.

Key Benefits of the VGC10 Vacuum Gripper

The VGC10 offers several important advantages:

• Compact design for tight spaces
• High payload of up to 15 kg
• No external air supply required
• Reduced maintenance costs
• Dual independent vacuum channels
• Fast deployment and setup
• Flexible suction configurations
• Lightweight construction
• Improved cycle times
• Seamless robot integration

It is widely used in modern automation environments where flexibility and efficiency are essential.

Download the VGC10 Vacuum Gripper Tech Specs

Pneumatics & Sensors Ireland are official distributors in Ireland for all OnRobot products and components. We have in-depth knowledge of all OnRobot products and their applications, and can advise on any installation or replacement. To learn more, contact us today.
