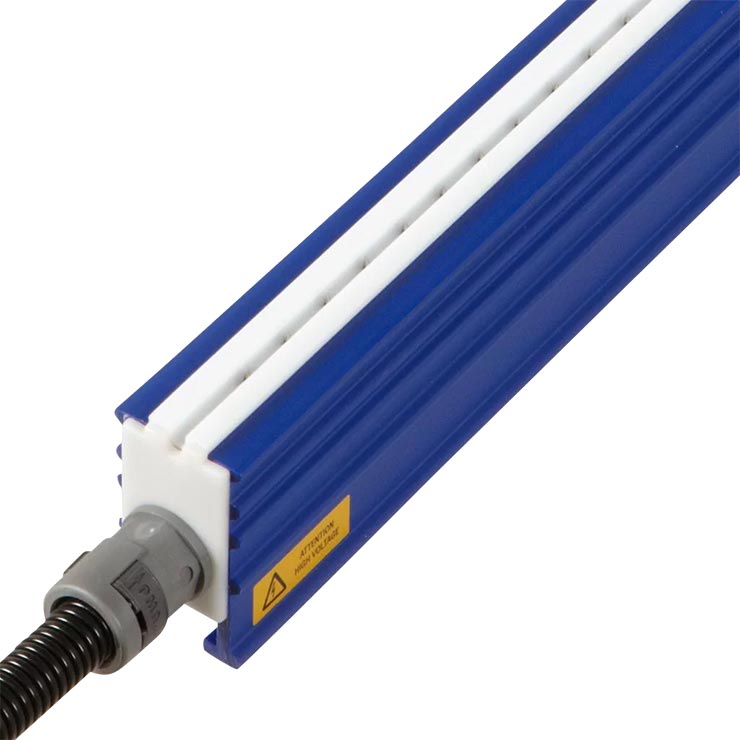

The HDR charging bar suits high velocity applications. Each individual point being fitted with a resistor, so the chance of spark-over is strongly reduced.
HDR Highlights
- Flat surface charging
- Protection with resistor per emitter
- Durable construction
- Easy mounting
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Charging bar
- Working distance: 20 mm using <30 kV, 75 mm using 30-60 kV
- Suits high velocity applications
- Chance of spark-over is strongly reduced
Technical specification
| Working distance | 20 mm using <30 kV 75 mm using 30-60 kV |
| Housing material | PVC |
| Ionisation points | special alloy |
| Cable | high voltage cable with PA protective sleeve |
| Weight | 1,6 kg/m |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | industrial |
| Operating voltage | 0 – 60 kV DC |
| Options | right angle cable exit |
| Suitable power unit | CM Lite, CM5 |
