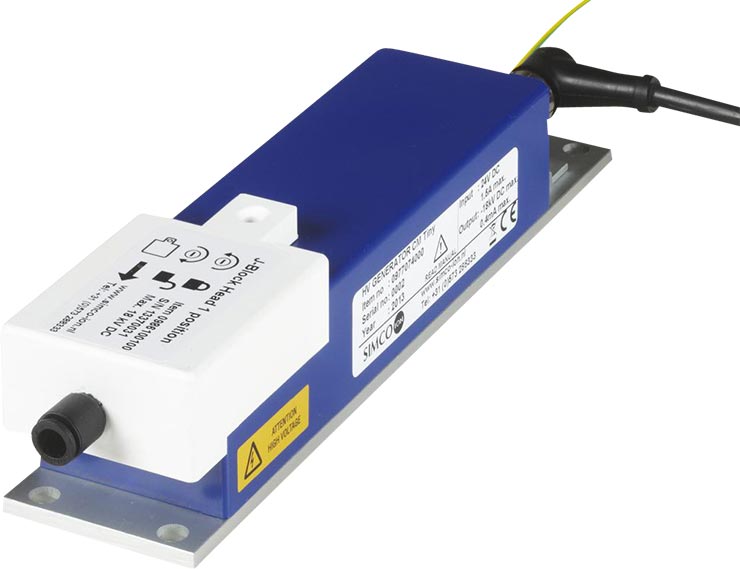

Smallest Industrial High Voltage Generator
The CM Tiny is the smallest industrial charging high voltage static generator for static electricity applications like static bonding, static cling or static used to glue materials together. The kV generator has fully integrated high voltage parts and only needs a 24V DC voltage powersupply. The housing is compact, robust and only weighs 500 grams which makes it perfect for small machines and applications with moving parts like for instance pick and place handling systems. It can easily withstand the high G-forces occurring during the process. The End-of-Arm-Tool can easily be used and configured and comes with a 4 year warrantee.
Two LED’s on the side give clear indications of the status of the charging generator:
- Green: Power is on
- Green fllashing: Powers is on and HV output is inactive
- Red: Alarm, HV overload or HV Ok signal short circuit
The CM Tiny can be used directly from a machine interface capable of supplying a 4-20 mA signal for the setpoint and a 24V DC signal for remote on/off. Manual operation can be implemented by an additional control circuit. The control circuit enables you to mount a potentiometer and LED by simply providing 2 holes in the front panel of your machine interface. Connection blocks with one or four outputs are available. For the use of the quick connect ports the charging electrode has to be equipped with a special connector. There is a special version of the HDR bar available for connection to the CM Tiny.
CM Tiny Highlights
- Small
- Lightweight
- Withstands high G-forces
- Changeable charging heads
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Output voltage of 0 – 20 kV (negative)
- For small machines and applications with moving parts (s.a. pick and place handling systems)
- Compact and robust, capable of withstanding G-forces
- No high voltage cable running through the cable channel
- Smallest charging generator
- Incorporated high voltage power supply, input voltage 24V DC
- Only weighs 500 grams
- HV OK signal
- Detachable high voltage distribution block
- LED’s on both sides
- Microprocessor controlled
- External Setpoint control
- Remote on/off signal
- IQ version available
Technical specification
| Supply voltage | 21-27 V DC |
| Electricity consumption | Max. 0,7 A |
| Setpoint | 4 – 20 mA, 220 Ω internal resistance |
| Connection | M12 connector, 5-pin |
| Output voltage | 0 – 20 kV negative |
| Output current | Max. 0,4 mA |
| Operating environment | Industrial, internal use |
| Ambient temperature | 0-55°C |
| Protection class | IP52 |
| HV OK | Supply voltage -1 V (max. 50 mA) |
| Remote on/off | 10 – 30 V |
| Dimensions (lxwxh) | 200 x 45 x 36 mm |
| Weight | 500 g (excluding high-voltage cables) |
| Housing material | ABS/aluminium/PVC |
| Vibration resistance | ≤ 6 G, ≤ 7 m/s |
| Output connection | 1 or 4 quick connect ports (Ø 6 mm) |
| Options | IQ version |
