HD Det

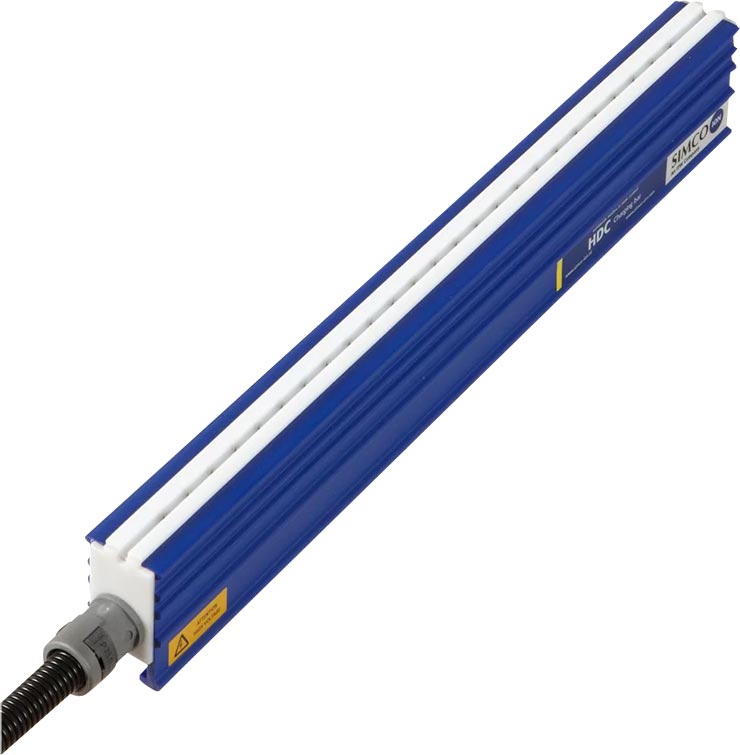

In order to detect perforations in a moving material web, this special electrode is equipped with a resistance per emitter. When a perforation passes the electrode, there will occur a controlled spark over. This is detected by the associated CM5 high voltage generator and is communicated with an output signal and the flashing of the red LED.
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Detection of perforations over a large area
- Detection of very small perforations possible
Technical specification
| Housing | ABS/PTFE |
| Cable | low voltage cable, standard M12 connector |
| Input power | 24 V DC, <0,5 A |
| Emitter pins | special alloy |
| Max detection frequency | 25 Hz |
| Signal | Multicolour LED: -Green, signal ”operation OK” -Red, signal perforation detected |
| Signal output | Optocoupler |
| Control voltage | 0-10 V of 0-24 V |
| Ambient temperature | 0 – 55°C |
| Use circumstances | industrial |
| Protection classification | IP 54 |
