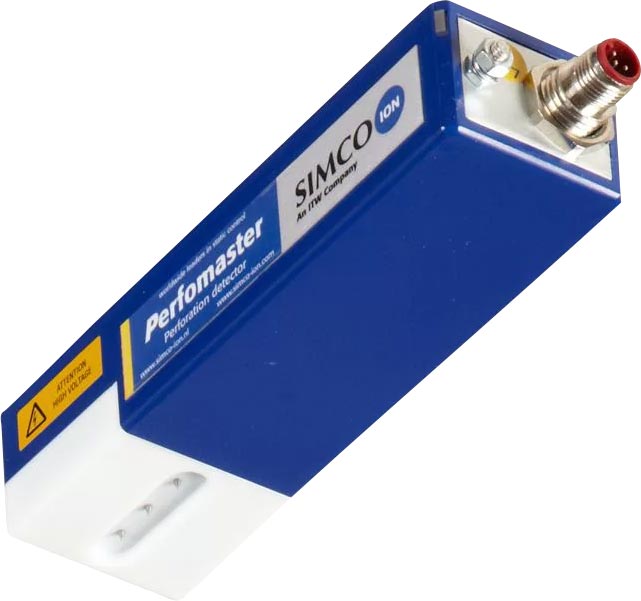

Perfomaster
The Perfomaster provides the hardware and software to generate a controlled spark over, detect this and evaluate the spark over to produce a pulse signal. The pulse signal is available on the output connector and can be used for counting the detected spark-overs and thus perforations.
The miniaturised design of the Perfomaster contains the electrode as well as the high voltage source. It is powered by 24 V DC, so no high voltage cable is required. Electrodes are standard fitted with three special alloy emitter pins and are detachable for replacement or remote placement.
A status signal LED provides direct system information on the Perfomaster.
- A green LED signals operation OK.
- An intermittent red LED signals a perforation detected.
Supply voltage and output voltage setting to the Perfomaster can be provided in two ways:
- directly form the machine f.e. PLC
- with additional external control kit
Perfomaster Highlights
- Check perforations
- Compact
- Count perforations
- Determine material position
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Incorporated high voltage power supply, input voltage 24V DC
- No high voltage cables needed
- wo-colour status LED: – Green LED: signals operation OK – Red LED: An intermittent LED signals a perforation detected
- Supply voltage and output voltage setting can be provided: – Directly from the machine f.e. PLC – With additional external control kit
Technical specification
| Housing | ABS/PTFE |
| Cable | low voltage cable, standard M12 connector |
| Input power | 24 V DC, <0,5 A |
| Emitter pins | special alloy |
| Max detection frequency | 25 Hz |
| Signal | Multicolour LED: -Green, signal ”operation OK” -Red, signal perforation detected |
| Signal output | Optocoupler |
| Control voltage | 0-10 V of 0-24 V |
| Ambient temperature | 0 – 55°C |
| Use circumstances | industrial |
| Protection classification | IP 54 |
