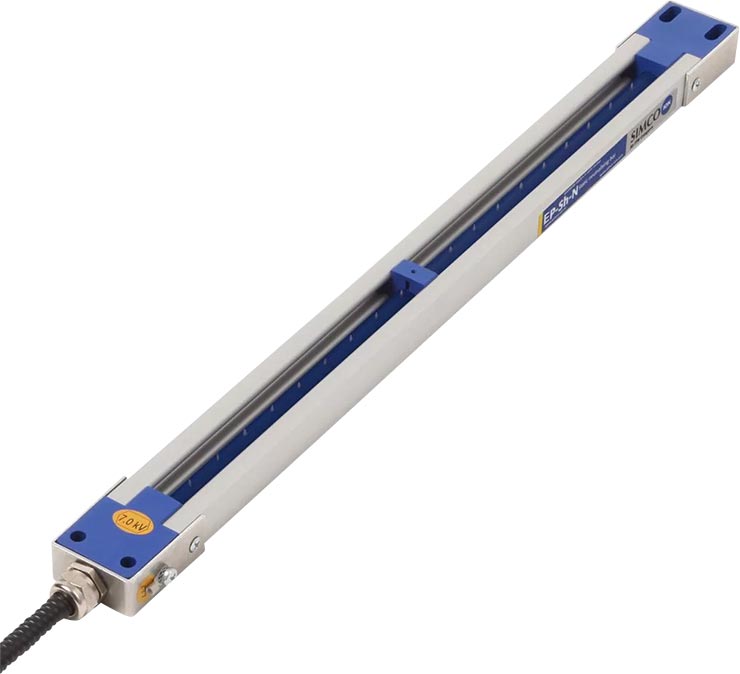

EP-Sh-N
Each individual emitter pin of this anti-static bar is coupled capacitively to the high voltage. You will therefore not get an electrical shock when the emitter pin is accidentally touched. Another advantage is that the bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.
EP-Sh-N Highlights
- Medium range
- Open structure
- UL certified
- Up to 6 m length
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Medium working distance: 150 mm max.
- Shockless touchable emitters
- The bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.
Technical specification
| Working distance | 150 mm max. |
| Housing material | Anodised aluminum |
| Inner bar material | PVC |
| Emitter pins | Special alloy |
| Cable | Metal shielded |
| Weight | 0,5 kg/m |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | Industrial |
| Operating voltage | 7 kV AC |
| Options | Right angle cable exit |
| Suitable power unit | A2A7S / MPM |
| Approval | UL |
Product specification
Downloads
We are your Simco-Ion partner!
Pneumatics & Sensors Ireland can guide you through the extensive Simco-Ion range, and advise you of the benefits it can bring to you. To learn more, contact us today.
