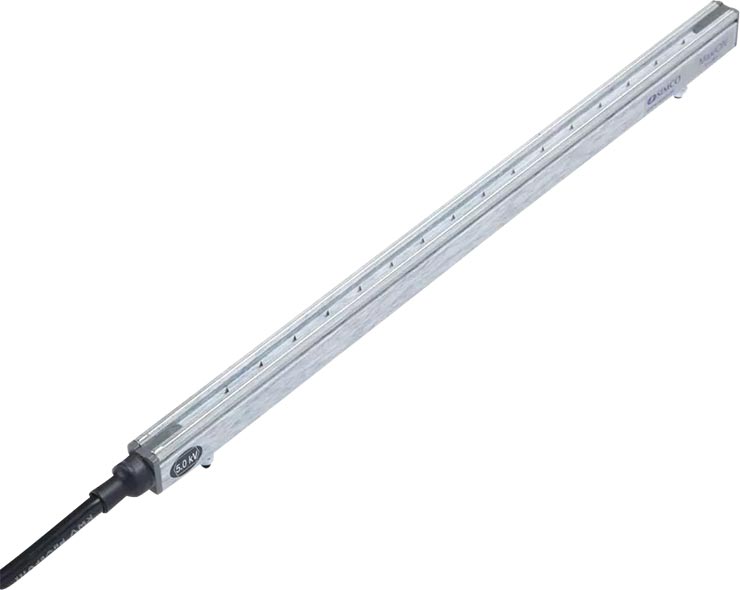

MaxION
Each individual emitter pin of the MaxION anti-static bar is coupled capacitively to the high voltage. You will therefore not get an electrical shock when the emitter pin is accidentally touched. The rugged MaxION static neutralising bar has a reinforced profile that minimises damage due to accidental bending. The ground reference is embedded in the reinforced profile.
The slide slot on the backside of the MaxION enables the user to position the mounting bolts as required, allowing greater mounting flexibility. After cleaning the precision emitter pins with a brush you can sweep the contaminants out of each light-angled end of the bar easily.
MaxION Highlights
- Medium range
- Short range
- Compact
- Up to 6 m length
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Medium working distance: 400 mm max.
- Minimal risk of deflection and deformation of the anti-static bar due to glassfiber reinforced plastic profile
- Shockless touchable emitters
- Compact
Technical specification
| Working distance | 400 mm max. |
| Housing material | Reinforced plastic |
| Emitter pins | Special alloy |
| Cable | High voltage cable |
| Weight | 0,6 kg/m |
| Ambient temperature | 0 – 70 °C |
| Use circumstances | Industrial |
| Operating voltage | 5 kV AC |
| Suitable power unit | A2A5S / MPM |
Product specification
