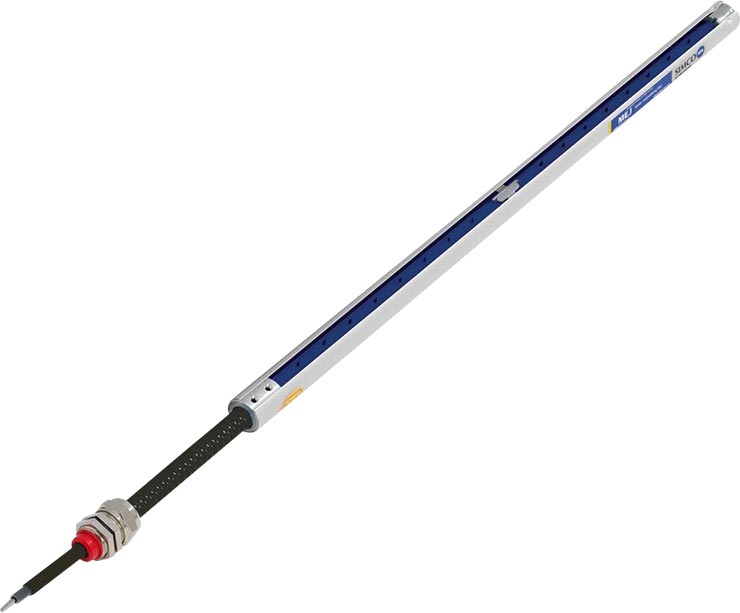

MEJ
MEJ anti-static bars are often used on production machines were short range ionisation is possible and where no moving machine parts are interfering the ionisation.The properties of this Simco-Ion anti-static bar are the same as those of type MEB, except that the MEJ type is round. Therefore mounting this anti-static bar via holes in the machine frame is possible.
MEJ Highlights
- Short range
- Compact
- Up to 6 m length
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Short working distance: 30 mm
- Shockless touchable emitters
- The bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.
- Round bar, can be easily mounted via holes in the machine frame
Technical specification
| Working distance | 30 mm max. |
| Housing material | Anodised aluminum |
| Inner bar material | PVC |
| Emitter pins | Special alloy |
| Cable | Metal shielded |
| Weight | 0,56 kg/m |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | Industrial |
| Operating voltage | 7 kV AC |
| Options | Right angle cable exit |
| Suitable power unit | A2A7S / MPM |
| Maxium lenght | 5800 mm |
Product specification
