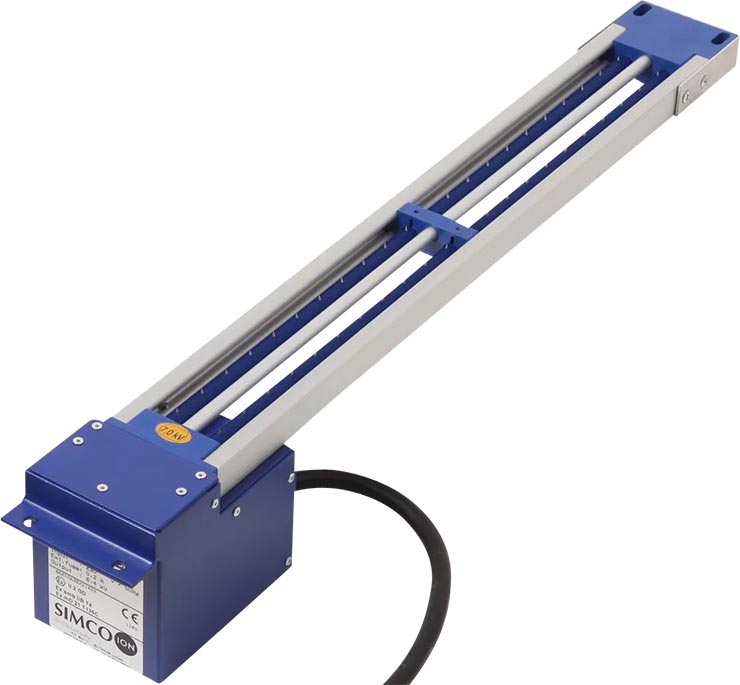

P-Sh-N-Ex
This anti-static bar has the same properties as the P-Sh-N. but is equipped with an integrated power unit, you do not need a high-voltage cable. This anti-static bar has been approved for use in certain hazardous environments. The 5m long primary cable shall be connected to the mains voltage. A neon lamp can indicate that high voltage is present. Under certain conditions the P-Sh-N-Ex bar is capable of neutralizing the materials from a maximum distance of 200 mm.
P-Sh-N-Ex Highlights
- Medium range
- ATEX certified
- UL certified
- Up to 6 m length
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Short working distance: 200 mm max.
- Shockless touchable emitters
- The bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.
- Ideal for neutralisation of static electricity on materials when the distance varies.
- Approved for use in certain explosion hazardous environments
Technical specification
| Working distance | 200 mm max. |
| Housing material | Aluminum / steel |
| Inner bar material | PVC |
| Emitter pins | Special alloy |
| Cable bar | 5 m (Neoprene) |
| Weight | Base 2 kg + 0,8 kg/m |
| Ambient temperature | 0 – 40 °C |
| Use circumstances | Industrial |
| U primary | 230 V, 50 Hz |
| Power consumption | 30 Watt |
| Option | Neon lamp, external |
| Suitable power unit | Integrated |
| Approval | UL, ATEX |
| ATEX category | II 2 GD Ex smb IIB T4 Ex mD 21 T135C |
| ATEX certificate | BAS00ATEX2162X |
Product specification
