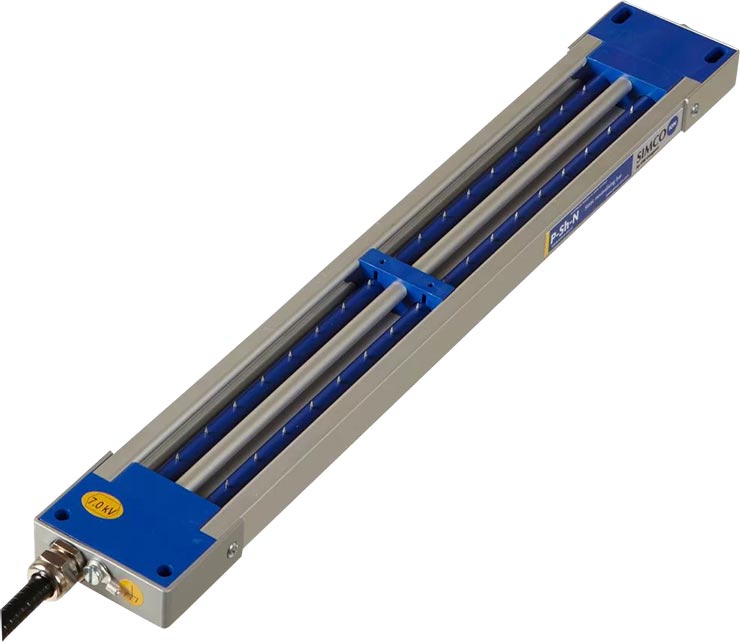

P-Sh-N
This type of anti-static bar, a more powerful version of the EP-Sh-N is highly effective and, with its long range, ideal for neutralization of static electricity on materials when the distance varies. Under certain conditions the maximum distance may even be as large as 600 mm. The construction of the bar is so rigid that bending of long bars is only minimal.
P-Sh-N Highlights
- Medium range
- Open structure
- UL certified
- Up till 6 m length
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Long working distance: 600 mm max.
- Shockless touchable emitters
- The bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.
- Ideal for neutralisation of static electricity on materials when the distance varies.
Technical specification
| Working distance | 600 mm max. |
| Housing material | Anodised aluminum |
| Inner bar material | PVC |
| Emitter pins | Special alloy |
| Cable | Metal shielded |
| Weight | 1kg/m |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | Industrial |
| Operating voltage | 7 kV AC |
| Options | Right angle cable exit Airsupport connection |
| Suitable power unit | A2A7S / MPM |
| Approval | UL |
Product specification
Downloads
