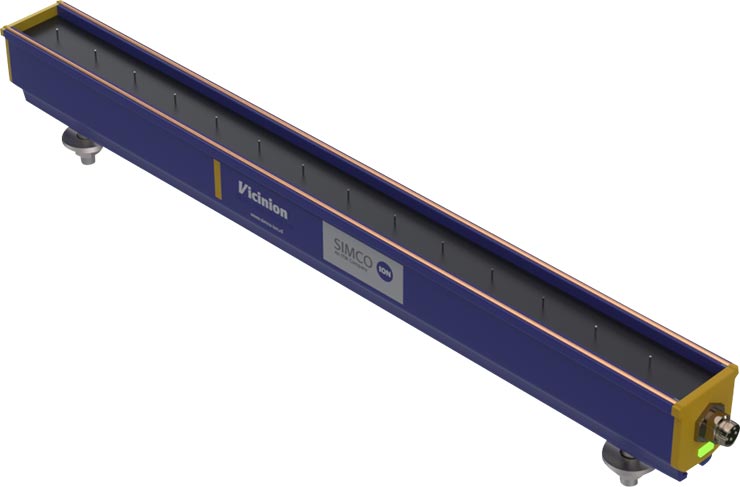

VicinION
The VicinION is an anti-static bar designed to neutralize electrostatically charged surfaces. The anti-static bar is equipped with an integrated high-voltage power supply, emitters and a status LED and is supplied with a 24V DC power supply via an M8 connector. The VicinION is optimally used between a distance of 5 and 75 mm.
VicinION Highlights
- Compact
- IP66
- 24V DC supply voltage
- LED indicator
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Incorporated high voltage power supply, input voltage 24V DC
- Short range ionisation: 5 – 75mm
- Standard M8 connector
- Designed for industrial use and easy cleaning; (protection classification IP66)
- Shockless touchable emitter
Technical specification
| Working distance | 5 – 75 mm |
| Housing material | Plastic |
| Emitter pins | Special alloy |
| Cable | Low voltage cable |
| Connector | M8-connector, 5-pole |
| Weight | 700 g/m |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | Industrial |
| U primary | 24 V DC, <0,2 A |
| Protection classification | IP66 |
| Suitable power unit | Integrated, 24V DC voltage input |
| Indication | 2-colour LED green/red |
| IO signals | Remote on/off 10-30 V DC |
| Mounting material | M5 x 18 sliding bolt |
| Inputs | |
| Remote on/off | 10 – 30 V (Ri >10k) |
| Switched on time | 30 ms |
| Outputs | |
| Output voltage | Max. 8 kV positive and negative |
| Current per emitter to ground | Max. 120 μA |
| High Voltage OK (HV OK) | Supply Voltage -1 V. Max. 50 mA |
| Option | 5-wire cable with M8-connector, 5 m 5-wire cable, M12 – M8, 2 m |
