Cobra

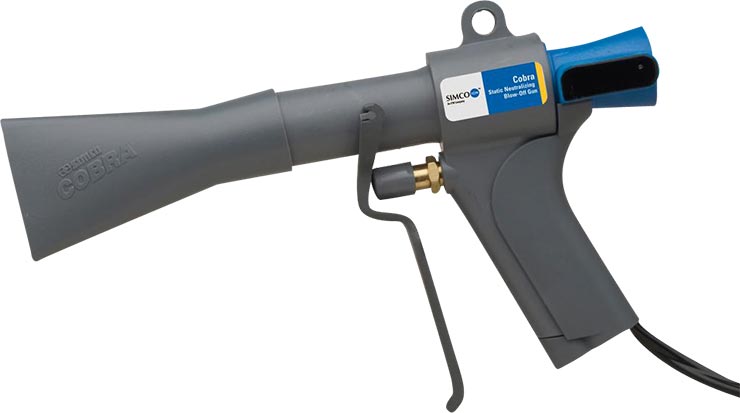

The Cobra ionizing air gun is excellently suited for heavy-duty industrial applications. It has a lightweight durable gun body made of highimpact plastic. The airflow is controlled by the trigger. The air flow is amplified by a minimum factor of 6 : 1 by drawing in ambient air through the rear. The high-voltage point integrated aerodynamically in the gun body cleans itself during use. The gun comes standard with 6 metres of cable. Two guns at most can be connected to a single power unit.
Cobra Highlights
- Lightweight
- High airflow
- Round and flat air flow
- Airflow control with trigger
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Working distance: 600 mm max
- It comes standard with 6 metres cable, 12 metre is also possible
- Ideal for heavy-duty industrial applications
- The emitter pin is cleaned during use
Technical specification
| Working distance | 600 mm |
| Housing material | impact resistant plastic |
| Ionisation point | special alloy |
| Cable | PVC and PE, 6 or 12 metres |
| Weight | 0,6 kg incl. 6 metres cable |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | Industrial |
| Operating voltage | 5,1 kV AC |
| Noise level | 95 dB using 2 bar at 60 cm |
| Air consumption | 200 l/min. using 2 bar |
| Max. pressure | 7 bar |
| Airconnection | 1/4” BSP, hose min. 9 mm inside |
| Suitable power unit | A2A5G |
Product specification
Downloads
