Blowflex Easy

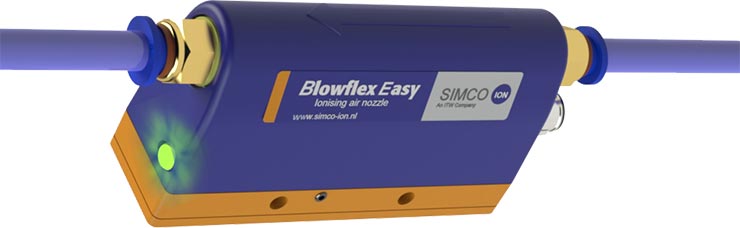

Blowflex Easy is an in-line ionising air nozzle for neutralising and cleaning various surfaces. The nozzle is connected to a 24V DC power supply and incorporates all high voltage parts. It is highly efficient due to a special patented high frequency high voltage generation. A green LED shows when the nozzles is in operation. A quick disconnect 8mm hose connection is standard. If desired an ¼” BSP air nipple can also be used instead of the quick connect nipple.
Mounting positions can be adapted to the situation, using the Simco-Ion universal mounting brackets, M8 threaded holes in the bottom, or 6 mm holes in the side. When using the holes in the side, an extra cover plate is provided to complete the housing. The housing is completely IP66 making is suitable for environments where frequent cleaning is conducted.
A wide range of output configurations are available to enable efficient ionised air distribution for many applications.
Blowflex Easy Highlights
- 24V DC input, standard M12 connection
- Multifunctional; optional ionised air output configurations
- IP66
- Status LED
Features
- Supply voltage: 24 V DC nominal
- Compressed air 1 – 7 bar (15 – 100 PSI)
- Connection G ¼’’ female thread and 8 mm hose connection
- Protection class IP66
- Weight 180 g
Technical specification
| Supply voltage | 24 V DC nominal |
| Energy consumption | Max. 0,3 A DC |
| Connection | M12, female, 5 pole |
| Compressed air | 1 – 7 bar Clean and free from oil |
| Connection | G ¼’’ female thread and 8 mm hose connection |
| Output connection | G (= BSPP) ¼’’ female thread |
| Use circumstances | Industrial |
| Protection class | IP66 |
| Ambient temperature | 0 – 55°C |
| Weight | 180 g |
| Housing | PC-ABS / PUR |
| Universal Mounting Bracket | PA66/6 |
Product specification
User Manual
Product Drawing
- BlowflexEasyBasic PD 16160000 GB
- BlowflexEasyFlatNozzle PD 16160003 GB
- BlowflexEasyFlexline PD 16160007 GB
- BlowflexEasyInline PD 16160001 GB
- BlowflexEasyInsideCleaning1 4 PD 16160002 GB
- BlowflexEasyInsideCleaning3 8 PD 16160011 GB
- BlowflexEasyMountingVariations PD 16160010 GB
- BlowflexEasyRoundMetal PD 16160005 GB
- BlowflexEasyRoundPlastic PD 16160004 GB
- BlowflexEasySpot PD 16160006 GB
