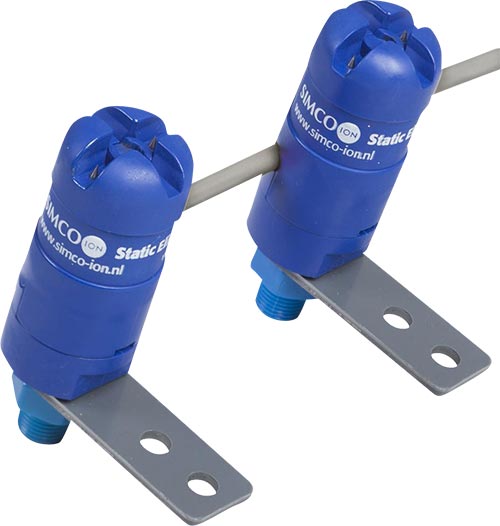

HE
The high voltage at both emitter points of the HE air nozzle is current limited. Being installed outside the air flow, the high-voltage points are hardly subject to fouling, if at all. The single point nozzle blowoff force is high at a relatively low air consumption. A Simco-Ion power unit supply the high voltage necessary for operation.
HE Highlights
- Modular
- Compact
- Low air consumption
- Multiple nozzles on 1 cable
Features
- Working distance: 250 mm max.
- Air consumption: 3,5 Nm3/h using 1 bar
- Max. pressure: 7 bar
- Shockless touchable emitters
- Being installed outside the air flow, the emitter pins are hardly subject to fouling, if at all
- Can be fitted on a standard air header
- Click system for easy assembly
Technical specification
| Working distance | 250 mm |
| Housing material | plastic |
| Ionisation point | special alloy |
| Cable | PVC and PE |
| Weight | 0,04 kg |
| Ambient temperature | 0 – 55 °C |
| Use circumstances | Industrial |
| Operating voltage | 7 kV AC |
| Noise level | 66 dB using 1 bar (at 1 metre) |
| Air consumption | 3,5 Nm3/h using 1 bar |
| Max. pressure | 7 bar 1/8” BSPT on nozzle |
| Option | multiple nozzles on header |
| Suitable power unit | A2A7S |
