Performax IQ Easy Ex

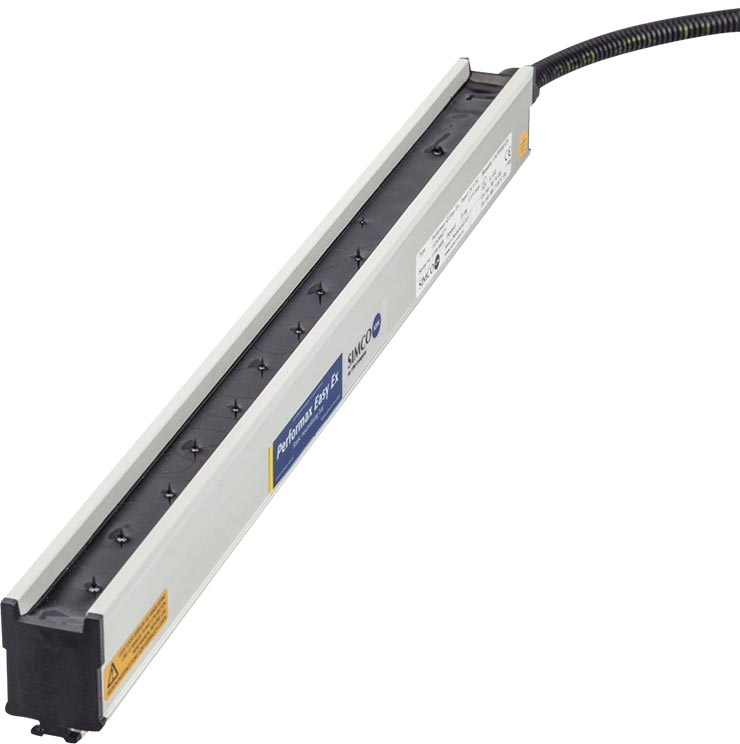

Performax IQ Easy Ex: for explosion hazardous environments
Compact high efficient static neutralising for explosion hazardous environments. The Performax IQ Easy Ex has an integrated high voltage power supply and requires only a low voltage input of 24V DC. A two color high bright LED visualises bar ON (green) or bar FAULT (red).
The Performax IQ Easy Ex bar has light slanted ends and protection classification IP66 which allows easy cleaning. The aluminium profile offers a very rugged structure even up to 3 meters. Universal mounting brackets are supplied for various mounting options.
Performax IQ Easy Ex anti-static bars are available in two variations
- Standard, for all applications with a working distance between 100 and 300 mm
- Speed, for high speed applications and for a working distance between 50 and 300 mm
Performax IQ Easy Ex Highlights
- 24V DC supply voltage
- ATEX certified
- IP66
- Aluminium housing
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Incorporated high voltage power supply, input voltage 24V DC
- Minimal risk of deflection and deformation of the anti-static bar due to robust aluminium profile
- Designed for industrial use and easy cleaning; (protection classification IP66)
- Universal mounting brackets
- No HV cable in Ex Area
- Complies to the latest standards
- IQ version available
- LED
- Atex II 2 GD EX mb IIB T4 Gb EX mb IIB T135 °C Db
Technical specification
| Working distance | 100-300 mm |
| Speed | 50 – 300 mm |
| Housing material | Aluminium/PA6/PUR |
| Emitter pins | Special alloy |
| Cable | Low voltage cable |
| Weight | 2,2 kg/m |
| Ambient temperature | 0 – 40 °C |
| Use circumstances | Industrial |
| U Primary | 24 V DC, <0,5 A |
| Protection classification | IP66 |
| Suitable power unit | Integrated, 24V DC voltage input |
| Indication | High bright LED green/red |
| Signalling: | Green continuous | In operating Green flashing | standbye Red continuous | Overloaded Red flashing | HV OK overloaded |
| I/O Signals | Serial communication with the Manager IQ Easy. Power via Manager IQ Easy |
| Options | Desktop power supply (100-240 V / 24 V) Din rail power supply (100-240 V / 24 V |
| Approval | Atex II 2 GD EX mb IIB T4 Gb EX mb IIIB T135 °C Db |
Product specification
Downloads
- PerformaxIQEasyExCableVersion PD 15300005 GB
- PerformaxIQEasyExInstallationOverview PD 15350110 GB
- PerformaxIQEasyExProtectiveHose PD 15300000 GB
- PerformaxIQEasyExSpeedInstallationOverview PD 15300110 GB
- PerformaxIQEasyExSystemOverview PD 15350100 GB
- StatusModulePerformaxIQEasyEx PD 15300300 GB
- UniversalBracket PD 15320100 GB
