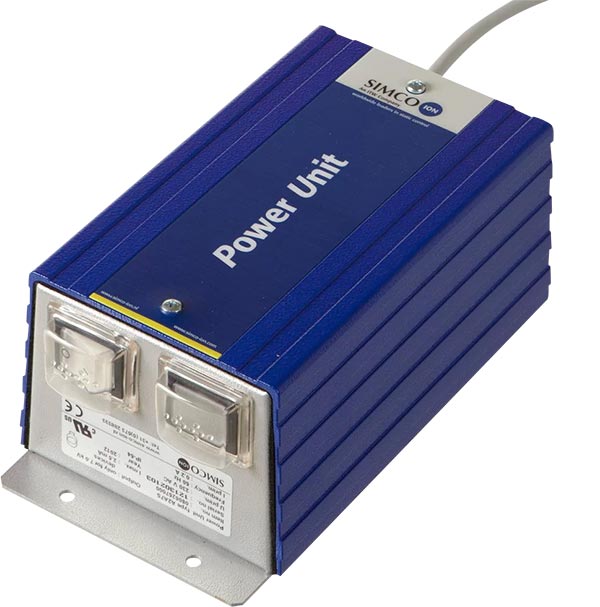

A Unit
The high voltage at both emitter points of the HE air nozzle is current limited. Being installed outside the air flow, the high-voltage points are hardly subject to fouling, if at all. The single point nozzle blowoff force is high at a relatively low air consumption.
A Unit Highlights
- High voltage indication
- Supplies up to 4 devices
- Low power consumption
- UL certified
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Provides high-voltage to 4 ionisers as a maximum
- Equipped with an on/off switch with an indicator lamp
- Equipped with a high-voltage indicator lamp
- UL approved
Technical specification
| Housing material | aluminium and steel, powdercoating |
| Weight | 2,8 kg |
| Connections | 4 |
| On/off switch with lamp | yes |
| High voltage indication | Neonlamp |
| Cable | 1,8 m |
| Ambient temperature | 0 – 50 °C |
| Use circumstances | Industrial |
| Protection classification | IP-54 |
| U primairy | 110 V or 230 V * |
| Frequency | 50 or 60 Hz* |
| Power consumption | 50 Watt |
| U secundairy | 3,3 – 7 kV AC * |
| I secondary | 2,5 mA max. |
| Option | HR, D |
| Approval | UL |
Product specification
