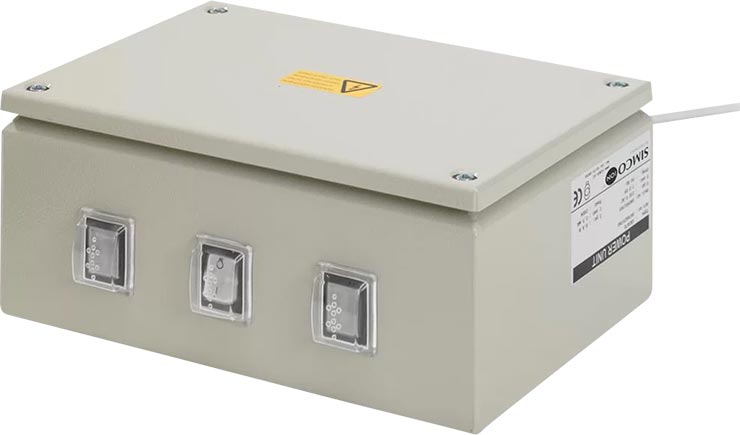

LB2A4S
This power unit is equipped with two high-voltage transformers with 180° phase-shifted output voltages. As a result, the anti-static bars connected to the power unit produce positive and negative ions simultaneously. This ensures optimal neutralization of static charges even at very high velocities. This power unit is fitted with two high-voltage indicators and an on/off switch with an indicator lamp.
LB2A4S Highlights
- High voltage indication
- Supplies up to 8 devices
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Suitable for very high production velocities
- Fitted with two high-voltage indicators
- Fitted with an on/off switch with an indicator lamp
Technical specification
| Housing material | aluminium and steel, powdercoating |
| Weight | 2,8 kg |
| Connections | 2x 4 |
| On/off switch with lamp | yes |
| High voltage indication | Neonlamp |
| Cable | 1,8 m |
| Ambient temperature | 0 – 50 °C |
| Use circumstances | Industrial |
| Protection classification | IP-54 |
| U primary | 110 V or 230 V * |
| Frequency | 50 or 60 Hz* |
| Power consumption | 50 Watt |
| U secondary | 7 KV AC * |
| I secondary | 2,5 mA max |
| Option | BHR, D |
Product specification
