MPM

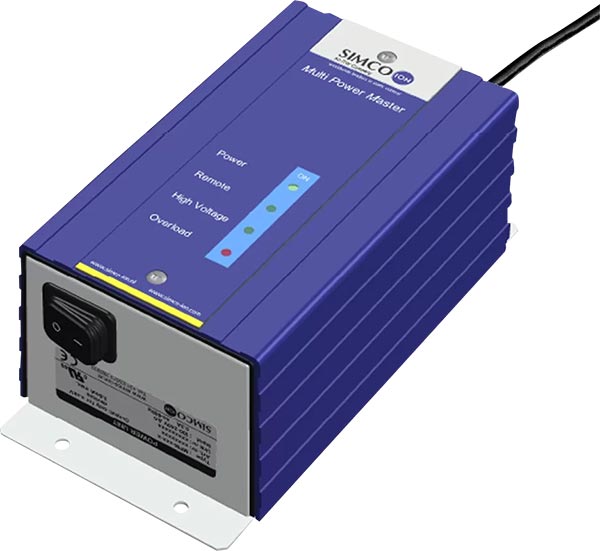

The MultiPowerMaster (MPM) is an addition to the range of high voltage powers units. It features electronically stabilized output voltage and a wide range of input voltages. Input voltages range from 100-240 V AC, 50-60 Hz. Output voltage is preset at the factory to 3.3 , 4.0 , 5.0, and 7 kV. Green and red LED’s are incorporated in the top face of the MPM.
Optionally the MPM can be fitted with a I/O connector for interfacing with f.e. a PLC. Optional I/O signals are available for remote on/off, high voltage present and overload. The I/O connector also contains a 24 V power source for use with the Typhoon airpressure sensor.
MPM Highlights
- Supplies up to 4 devices
- LED indicators
- Short circuit protected
- UL certified
Full control of static electricity in your production process thanks to the IQ Easy Platform
Features
- Provides high-voltage to 4 ionisers as a maximum
- A wide range of input voltages and frequency
- LED signalling
- UL approved
Technical specification
| Housing material | aluminium and steel, powdercoating |
| Weight | 3 kg |
| Connections | 4 |
| On/off switch with lamp | yes without light |
| High voltage indication | LED |
| Cable | 1,8 m |
| Ambient temperature | 0 – 50 °C |
| Use circumstances | Industrial |
| Protection classification | IP-54 |
| U primary | 100 V or 240 V * |
| Frequency | 50 or 60 Hz* |
| Power consumption | 36 Watt |
| U secondary | 3,3 – 7 kV AC * |
| I secondary | 3 mA max. |
| Option | B,H,M,O,P en R |
| Approval | UL |
Product specification
Downloads
