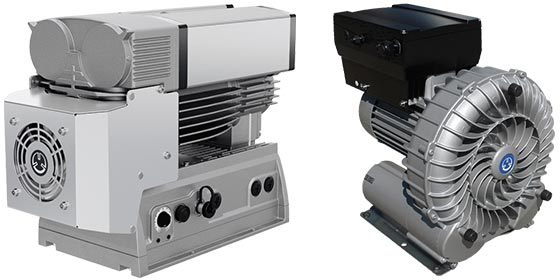

Side Channel Vacuum Pumps

Becker side channel vacuum pumps provide a reliable and efficient solution for low-pressure vacuum and air movement applications. These pumps are known for their oil-free operation, low maintenance requirements, and consistent performance. At PSI, we supply Becker side channel vacuum pumps designed to meet the needs of modern industrial processes.

Overview of Becker Side Channel Vacuum Pumps

Side channel vacuum pumps, also known as regenerative blowers, use a dynamic compression principle to generate vacuum or pressure. Inside the pump, a fast-rotating impeller moves air through specially designed side channels. As the air circulates, it gains energy before being discharged at the outlet.

Because the impeller operates without contact, there is no internal wear within the compression chamber. As a result, these pumps deliver long service life with minimal maintenance. Furthermore, the oil-free design ensures clean and contamination-free operation across all applications.

Key Advantages

Becker side channel vacuum pumps offer several advantages that make them ideal for continuous industrial use.

• Oil-Free Operation – Ensures clean air flow and eliminates contamination risk
• Contact-Free Design – Reduces wear and increases durability
• Low Maintenance Requirements – Minimal servicing needed over long intervals
• Quiet Operation – Integrated silencers reduce noise levels
• Compact Construction – Easy to install in a wide range of environments
• Reliable Continuous Duty – Designed for long-term operation

In addition, these pumps operate with low vibration, which improves working conditions and protects surrounding equipment.

How Side Channel Technology Works

Side channel vacuum pumps use a rotating impeller positioned within a specially shaped housing. Air enters through the inlet and is accelerated by the impeller blades. It then travels through the side channel, where it is compressed before exiting through the outlet.

Single-stage pumps allow the air to circulate once within the housing, delivering higher volume flow. However, two-stage pumps redirect the air for a second pass, which increases vacuum or pressure levels.

This flexible design allows users to select the right configuration based on performance requirements.

Technical Features

Becker side channel vacuum pumps are available in a wide range of sizes and configurations. This ensures suitability for both small-scale and large industrial applications.

Key technical features include:

• Volume Flow: Typically ranges from around 50 to over 1,500 m³/h depending on model
• Ultimate Vacuum: Up to approximately -440 mbar (relative) for two-stage systems
• Air-Cooled Operation: Eliminates the need for additional cooling systems
• Integrated Silencers: Reduce noise and improve operational comfort
• Optional Accessories: Filters, relief valves, and frequency converters

Moreover, Becker offers variable speed control through frequency inverter technology. This allows performance to match system demand, improving energy efficiency.

Becker side channel vacuum pumps are widely used across many industries due to their versatility and reliability.

Common applications include:

• Pneumatic Conveying – Transporting powders, granules, and lightweight materials
• Packaging and Automation – Pick and place systems, material handling, and vacuum lifting
• Plastics Industry – Cooling, drying, and conveying processes
• Environmental Engineering – Aeration, wastewater treatment, and filtration
• Printing and Paper – Sheet handling, drying, and transport systems
• Electronics Manufacturing – Precision handling and component processing

For example, these pumps are ideal for vacuum fixing, where components must remain securely in place during production. Similarly, they are used in conveying systems where consistent airflow is required.

Energy Efficiency and Performance

Energy efficiency is a key benefit of Becker side channel vacuum pumps. Their optimised impeller design ensures efficient air movement with relatively low energy consumption.

Furthermore, multi-stage compression allows the pump to deliver stable vacuum levels with low pulsation. This improves process control and reduces stress on connected systems.

With optional variable speed drives, the pump can adapt to changing demand. As a result, energy use is reduced, and operational costs are lowered.

Service and Maintenance

Side channel vacuum pumps are designed to require minimal maintenance. Because there is no contact between moving parts, internal wear is significantly reduced.

Routine maintenance typically involves checking filters and ensuring airflow remains unobstructed. Consequently, downtime is minimised, and reliability is improved.

At PSI, we provide full support for Becker side channel vacuum pumps. Our services include:

• Installation and commissioning support
• Preventative maintenance programmes
• Supply of genuine spare parts
• Technical advice and system optimisation

This ensures that your vacuum system continues to perform at its best.

Becker side channel vacuum pumps combine advanced engineering with practical benefits. Their oil-free, contact-free design ensures clean operation and long service life.

By choosing Becker, you benefit from:

• Consistent and reliable vacuum performance
• Low maintenance and reduced downtime
• Flexible configurations for different applications
• Energy-efficient operation for cost savings

These advantages make side channel pumps an excellent solution for low-pressure vacuum and air movement tasks.

Becker side channel vacuum pumps offer a dependable, efficient, and low-maintenance solution for a wide range of industrial applications. Their oil-free operation, compact design, and reliable performance make them ideal for continuous use in demanding environments.

At PSI, we supply the full range of Becker side channel vacuum pumps, supported by expert advice and fast delivery. Whether you require a standalone unit or a complete system, our team is ready to help you find the right solution for your application.

Pneumatics & Sensors Ireland are exclusive distributors in Ireland for all Becker products and components. We have in-depth knowledge of all Becker products and their applications, and can advise on any installation or replacement. To learn more, contact us today.

Downloads

• Becker SV 130 5 Pressure vacuum pumps en
